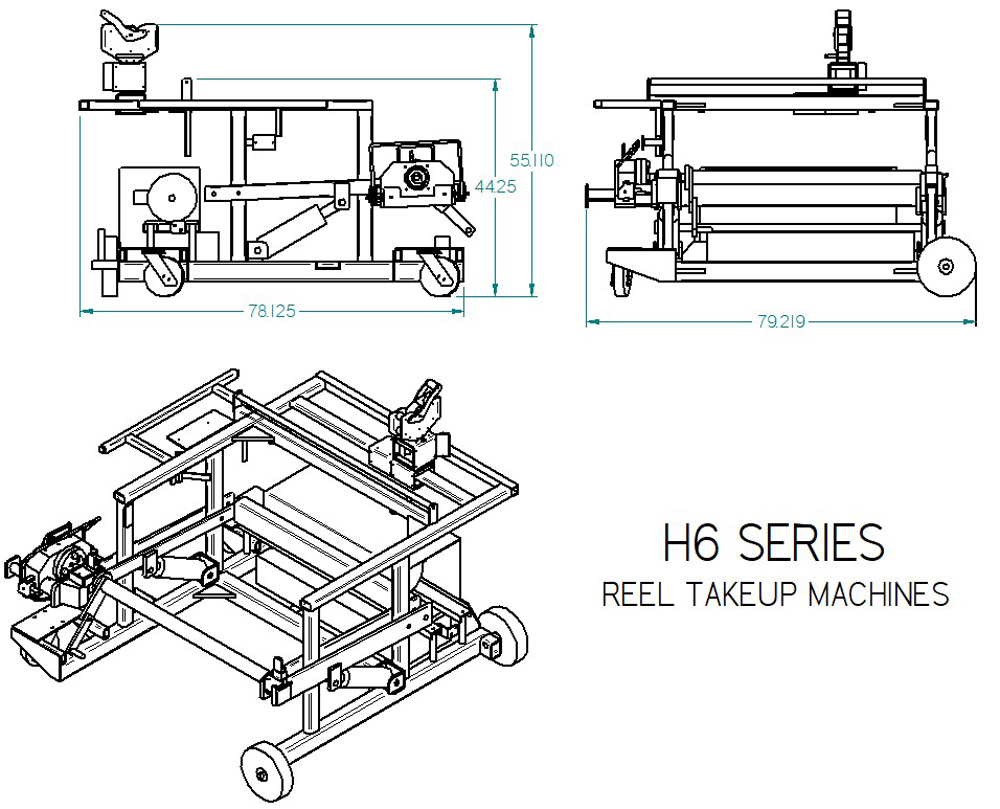

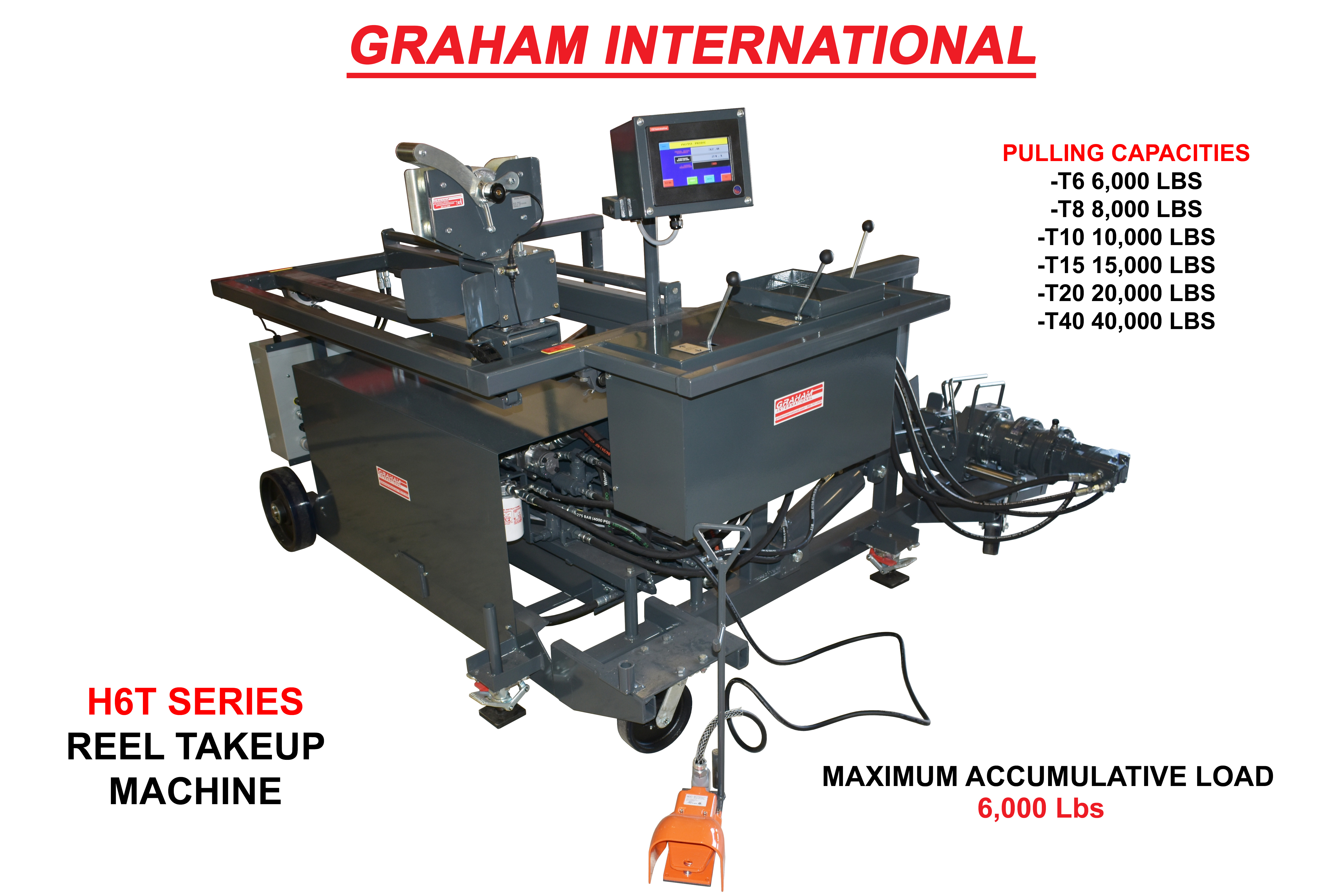

H6T SERIES REEL TAKEUP MACHINES

Reel Capacity: 72" Diameter x 42" Wide - 6,000 LB. accumulative weight  -  6,000 to 40,000 LB. Pulling Capacities

H6T Series Hydraulic Reel TakeUp Machine

Reel Capacity: 72” Dia.42” Wide X 6,000 lb.

​



Graham Advantage Standard Features

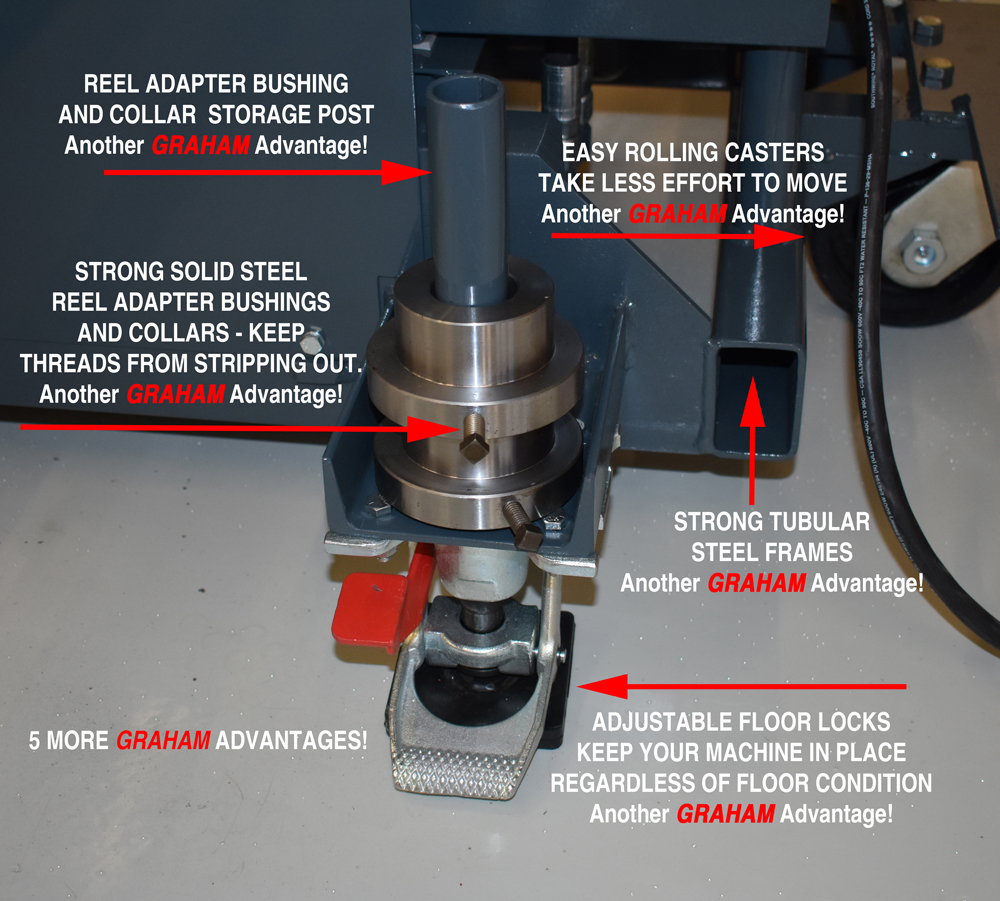

  • Wearproof Axle Saddles

  • Holding Brake Motor - Maintains Tension T10+

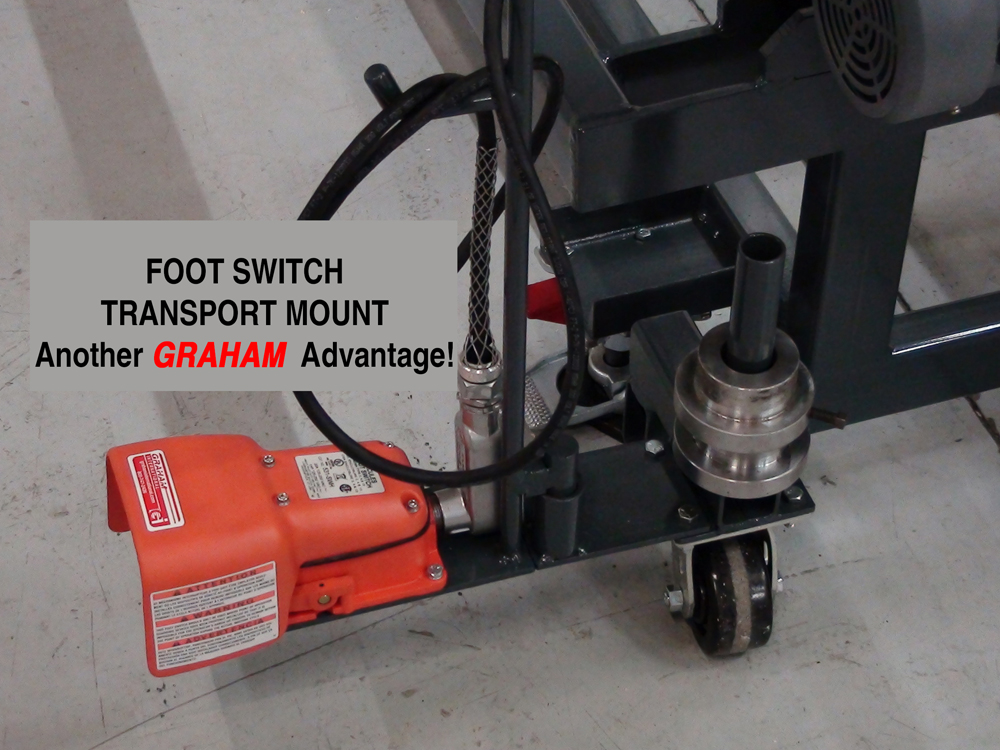

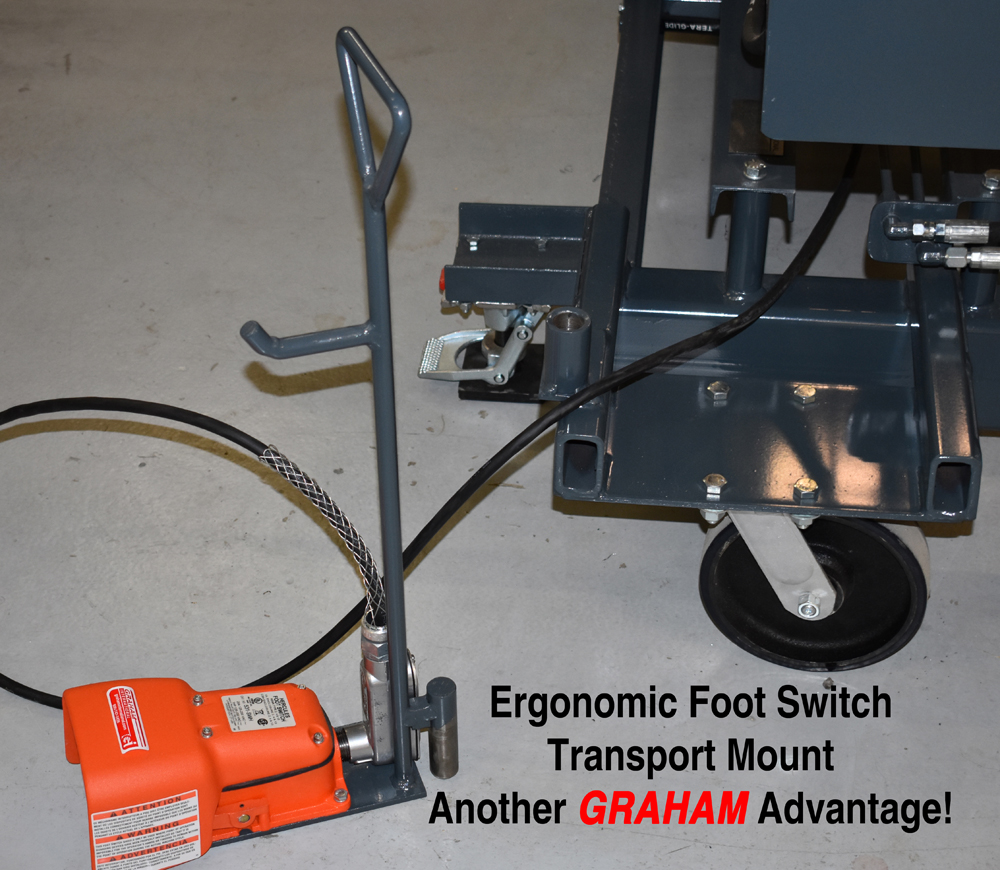

  • Safety Foot Switch & Transport Mount

  • Adjustable Floor Lock Brakes

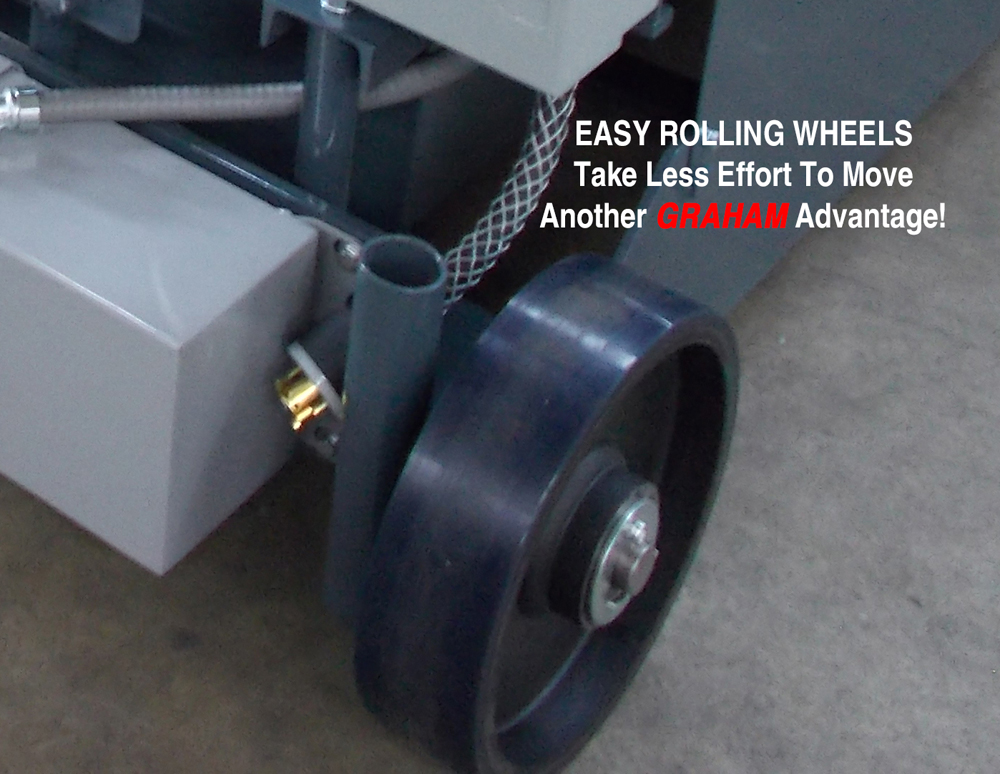

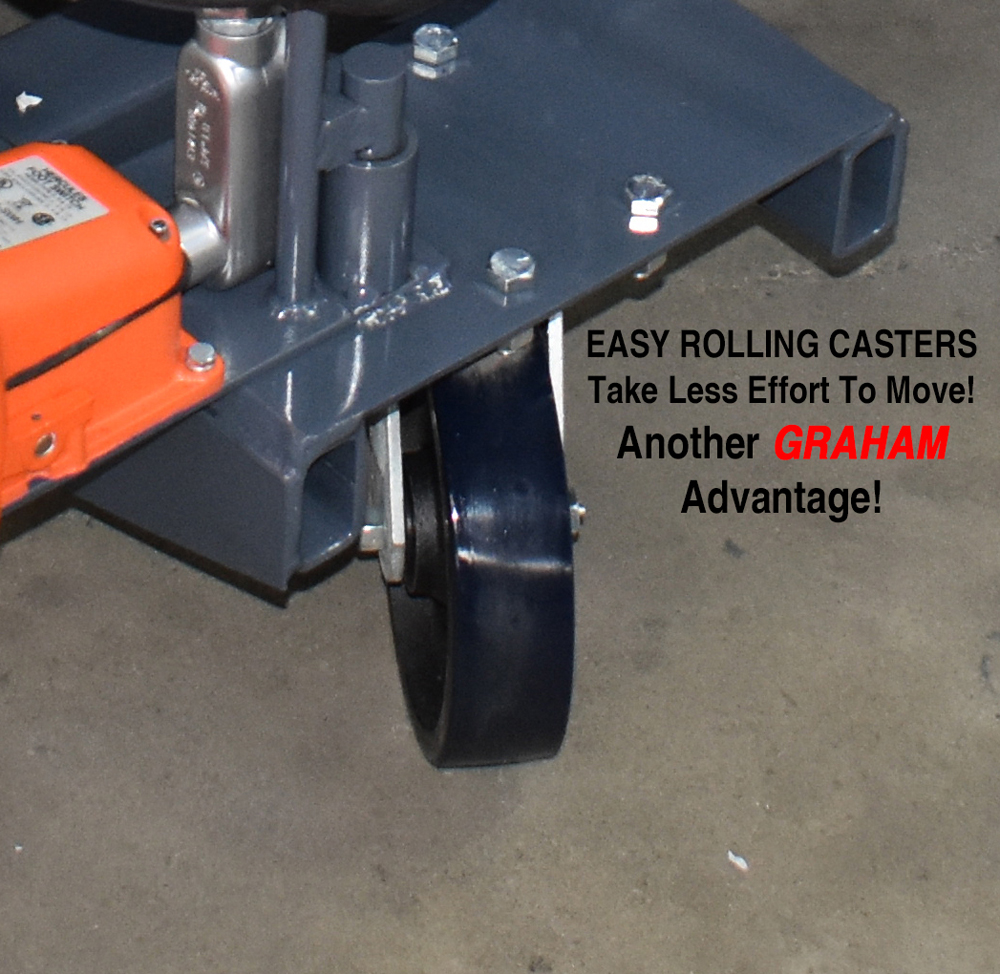

  • Easy Rolling Wheels and Casters

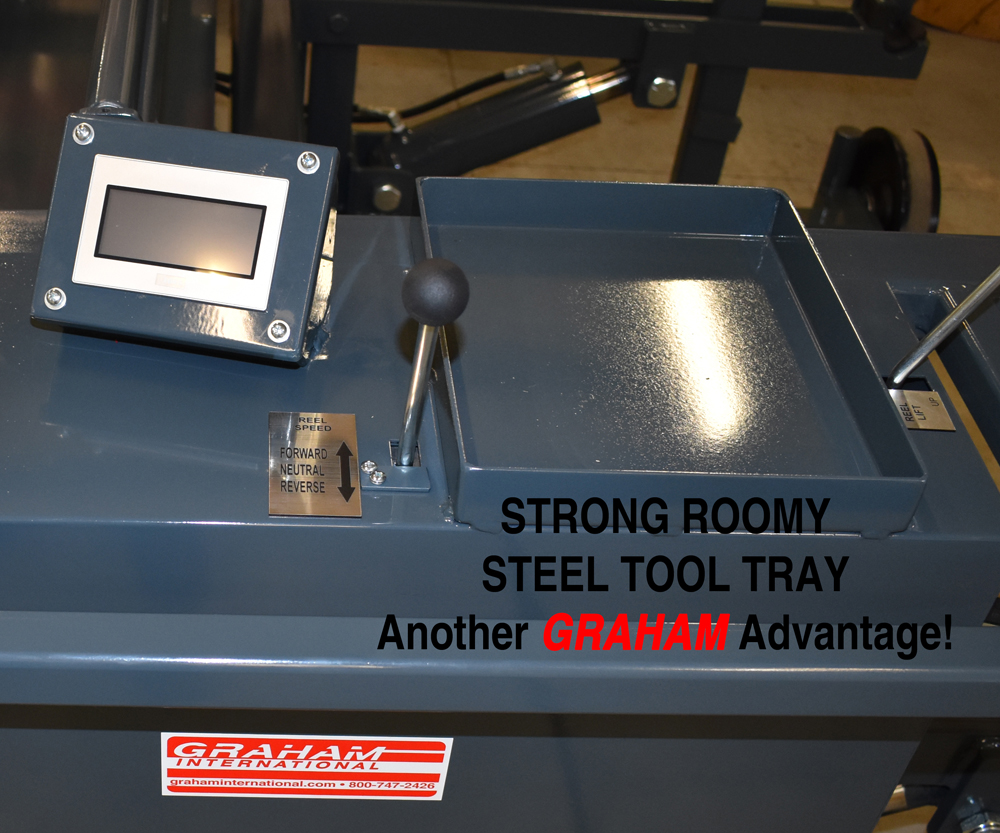

  • Large Steel Tool Tray

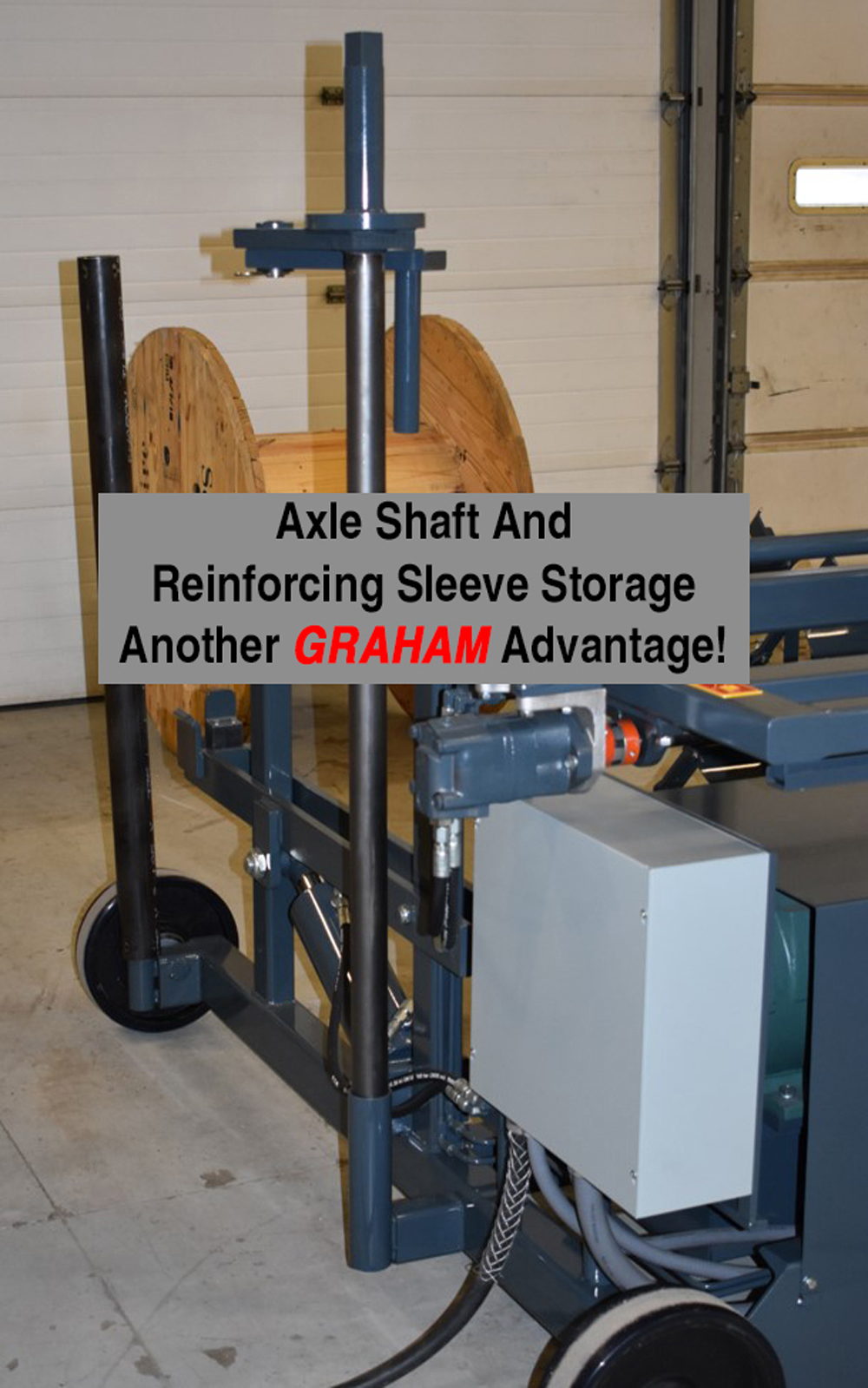

  • Axle Shaft Storage

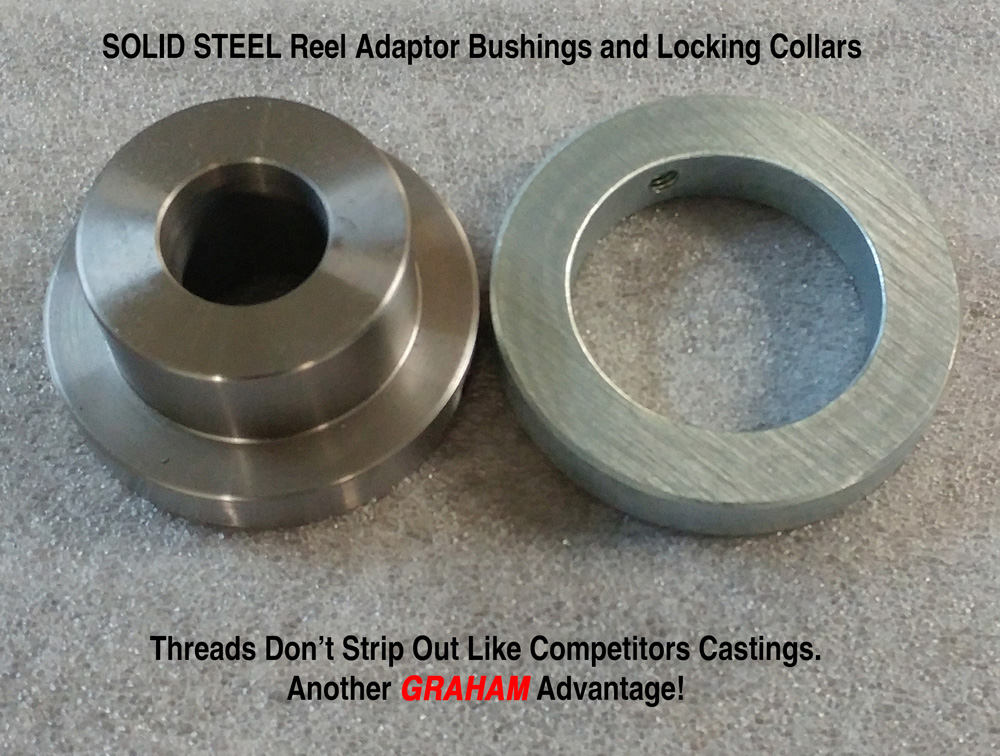

  • Solid Steel Reel Adapter Bushings & Storage

  • Excellent Customer Service

  • 2 YEAR COMPONENT WARRANTY

  • 5 YEAR CRAFTSMANSHIP WARRANTY

​​

More Standard Features​

  • Heavy Duty Tubular Steel Frame

  • All Hydraulic Functions

  • Dynamic Braking on Reel Drive

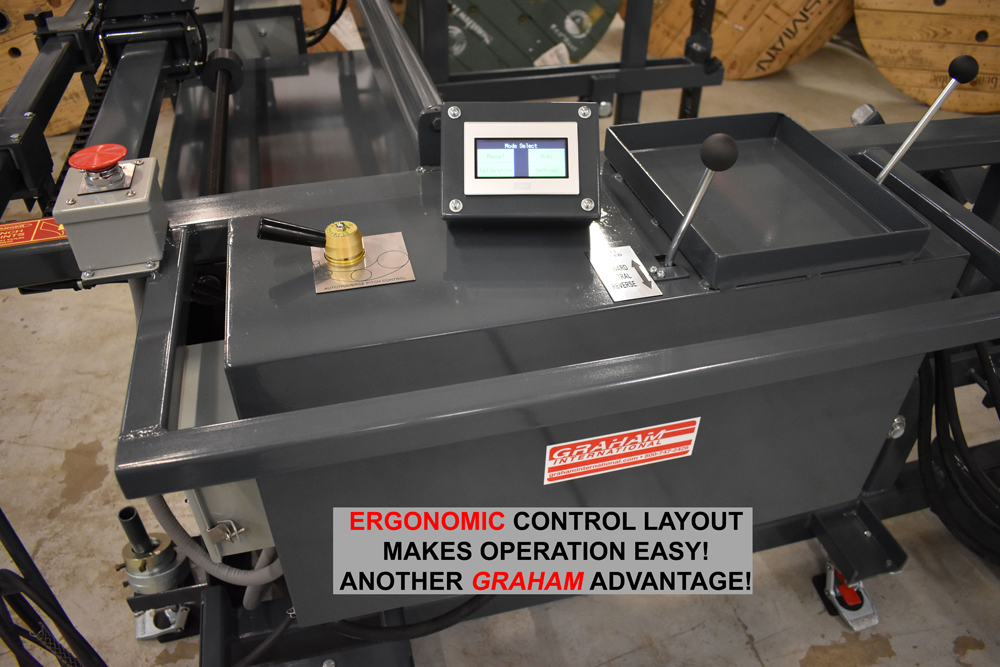

  • Conveniently Placed Lever Controls

  • Linear Slide Mounted High Torque Motor

  • Variable Speed 0 to 60 RPM

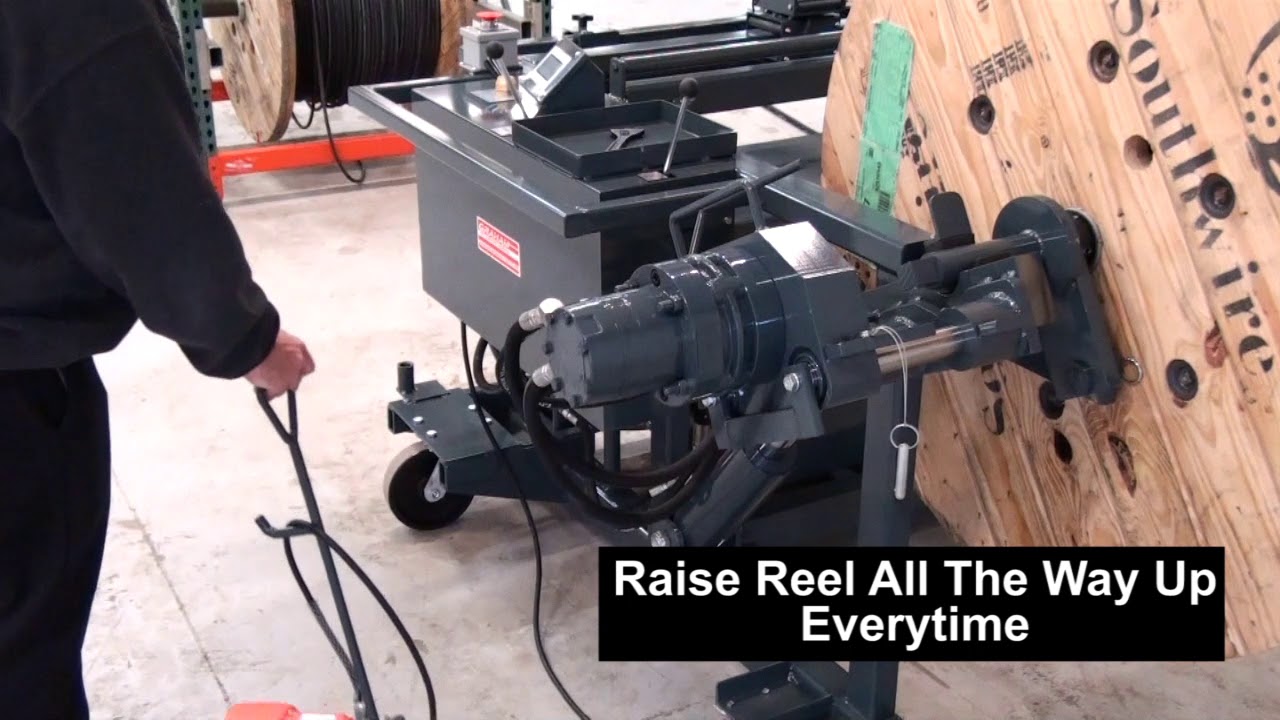

  • Double Acting Cylinders - Powered Up & Down

  • Safety Valve so Reels Cannot Drift Down once raised

  • Hand Operated Linear Wire Traverse (Level Wind)

  • Two Sets of Reel Adapter Bushings

  • 240/480 Volt 3 Phase - Please Advise



Options Available​

  • Stop To Length

  • Power Wire Traverse

  • Automatic Wire Traverse

  • Measuring Devices

  • Paralleling Wire Guides

  • Collapsible Coilers

  • Stretch Wrap Dispenser Mount

  • Paralleling Reels

  • Spooling Attachment

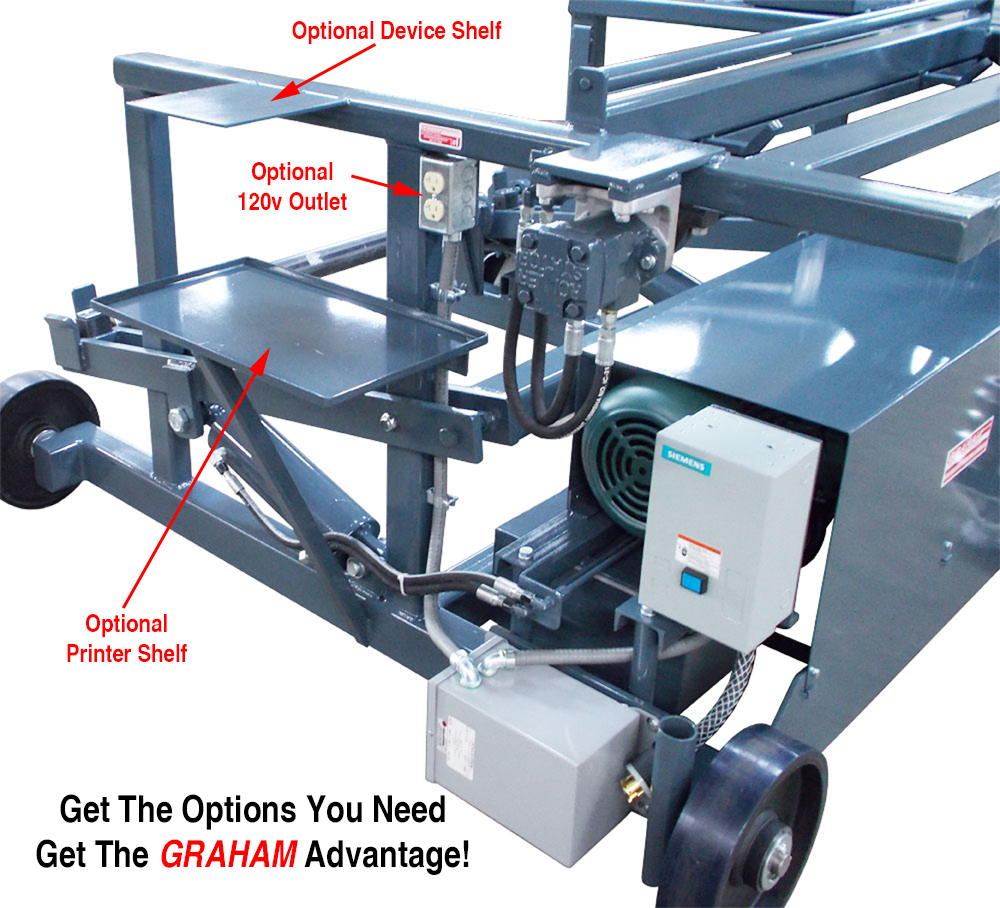

  • Extra Shelves For Tools, Printers & Devices

  • 120v Power Outlets

​

POWER OPTIONS

  • H6T6 - 6,000 LB. Pull

  • H6T8 - 8,000 LB. Pull

  • H6T10 - 10,000 LB. Pull

  • H6T20 - 20,000 LB. Pull

  • H6T30 - 30,000 LB. Pull

  • H6T40 - 40,000 LB. Pull
